Step 5 - Download Reference Layers from Protomaps

In this step, we'll download a tile extract for Waiheke Island to use as our map's basemap (roads, labels, landcover, etc.).

Downloading Protomaps

Protomaps provides global basemap tiles stored in PMTiles format and extractable by bounding box, so you can grab just what you need to provide some reference layers on your trail map.

Install PMTiles CLI

We need the PMTiles command-line tool to download and extract a small subset of Protomaps, which is stored as a PMtiles file with global extent. You can either install the tool for yourself locally, or use Codespaces (even if you did not use it in previous steps).

If you're using Codespaces: PMTiles CLI is automatically installed when your Codespaces environment is created. You can skip the installation steps below and go directly to the "Verify Installation" section.

If you're working locally, follow the installation instructions for your operating system:

macOS Installation

brew install pmtiles

Linux Installation

Download from https://github.com/protomaps/go-pmtiles/releases or follow the Protomaps Getting Started guide.

Windows Installation

  1. Download the Windows binary:

  2. Choose one of these options:

    Option A: Add to PATH (recommended for ongoing use)

    • Create a folder for tools (e.g., C:\tools) if you don't have one
    • Move the downloaded pmtiles-windows-amd64.exe to that folder
    • Rename it to pmtiles.exe
    • Add the folder to your system PATH:
      • Press Win + R, type sysdm.cpl, press Enter
      • Go to "Advanced" tab → "Environment Variables"
      • Under "System variables", find "Path" and click "Edit"
      • Click "New" and add your tools folder path (e.g., C:\tools)
      • Click OK on all dialogs
    • Open a new terminal/command prompt and verify: pmtiles version

    Option B: Use from download location (simpler for one-time use)

    • Place the downloaded file in your repository root directory
    • Rename it to pmtiles.exe
    • Use it with the full path: .\pmtiles.exe version (or pmtiles.exe version from the repo root)

Verify Installation

Open a terminal and input:

pmtiles version

Define the Bounding Box

For Waiheke Island, Auckland, New Zealand, we'll use this bounding box:

  • West (min longitude): 174.8
  • East (max longitude): 175.2
  • South (min latitude): -37.0
  • North (max latitude): -36.7

Format: We'll structure the bounding box as a list of west, south, east, north coordinates, and end up with 174.8, -37.0, 175.2, -36.7

This bounding box includes:

  • The entire Waiheke Island
  • Some surrounding water for context
  • A small buffer around the island

Tip: Need to find a bounding box for a different area? Use bboxfinder.com - draw a rectangle on the map and it will give you the bounding box coordinates in the format you need.

Find the Latest Protomaps Build

  1. Check Protomaps builds: Visit https://maps.protomaps.com/builds/
  2. Find the latest daily build: Look for the most recent successful build in the "date" column (builds run nightly but it's the "tileset version" that matters for ensuring you've got the latest data)
  3. Note the filename: It will look like YYYYMMDD.pmtiles (e.g., 20251110.pmtiles)

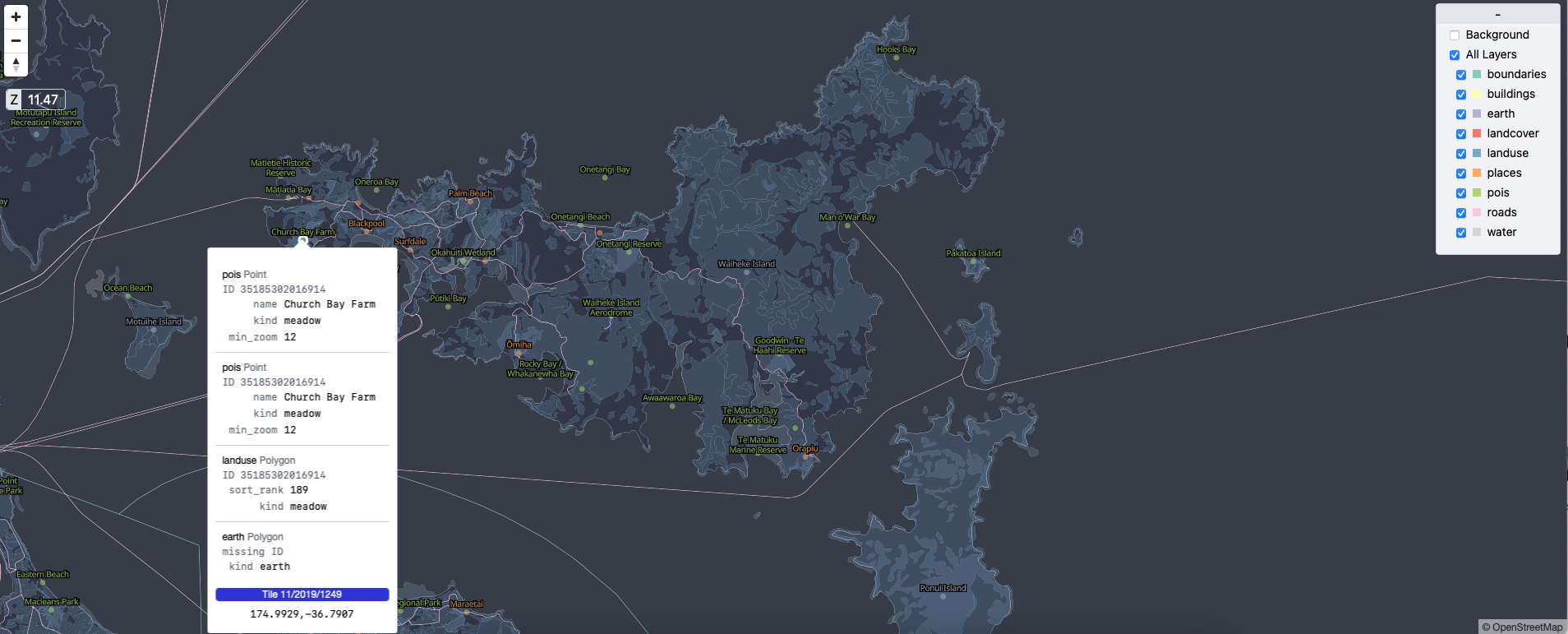

  4. Click xray in the same row
  5. This allows you to inspect the tile layers in the basemap data. Zoom in on Wiaheke Island to see what's there. Toggle on and off pois. What features are these?

Download the Protomaps Extract

Run this command (replace 20251110 with a more recent build if you like):

pmtiles extract https://build.protomaps.com/20251110.pmtiles sources/waiheke_island.pmtiles \
  --minzoom=10 \
  --maxzoom=16 \
  --bbox=174.8,-37.0,175.2,-36.7

Parameters explained:

  • --minzoom=10: Minimum zoom level (this is the maximum extent of the map, beyond this, the island is too tiny)
  • --maxzoom=16: Maximum zoom level (this is the maximum detail you can get from the data)
  • --bbox=174.8,-37.0,175.2,-36.7: Bounding box for Waiheke Island

Note: This extract will typically be 50-200 MB, well under the 1 GB limit Github supports.

Wait for Download

The download process can take a few minutes depending on:

  • Your internet connection
  • The size of the extract
  • Server load

You'll see progress output showing the download status, and the number of tiles and total file size of your download.

Commit Your Changes

Follow the process from Step 2 to add, commit, and push waiheke_island.pmtiles to your remote fork.

Note for Codespaces users: Commit these changes in your Codespaces environment using the terminal or Source Control panel.

What You Have Now

At the end of this step, you should have:

  • sources/waiheke_island.pmtiles: Protomaps basemap tiles for Waiheke Island, stored remotely via Github.

Next Steps

In the next step, we'll configure the stylesheet to style the Protomaps tiles and integrate them into your map.
